HyperCube

Spectral Imagery Analysis Software

Published July 21, 2015

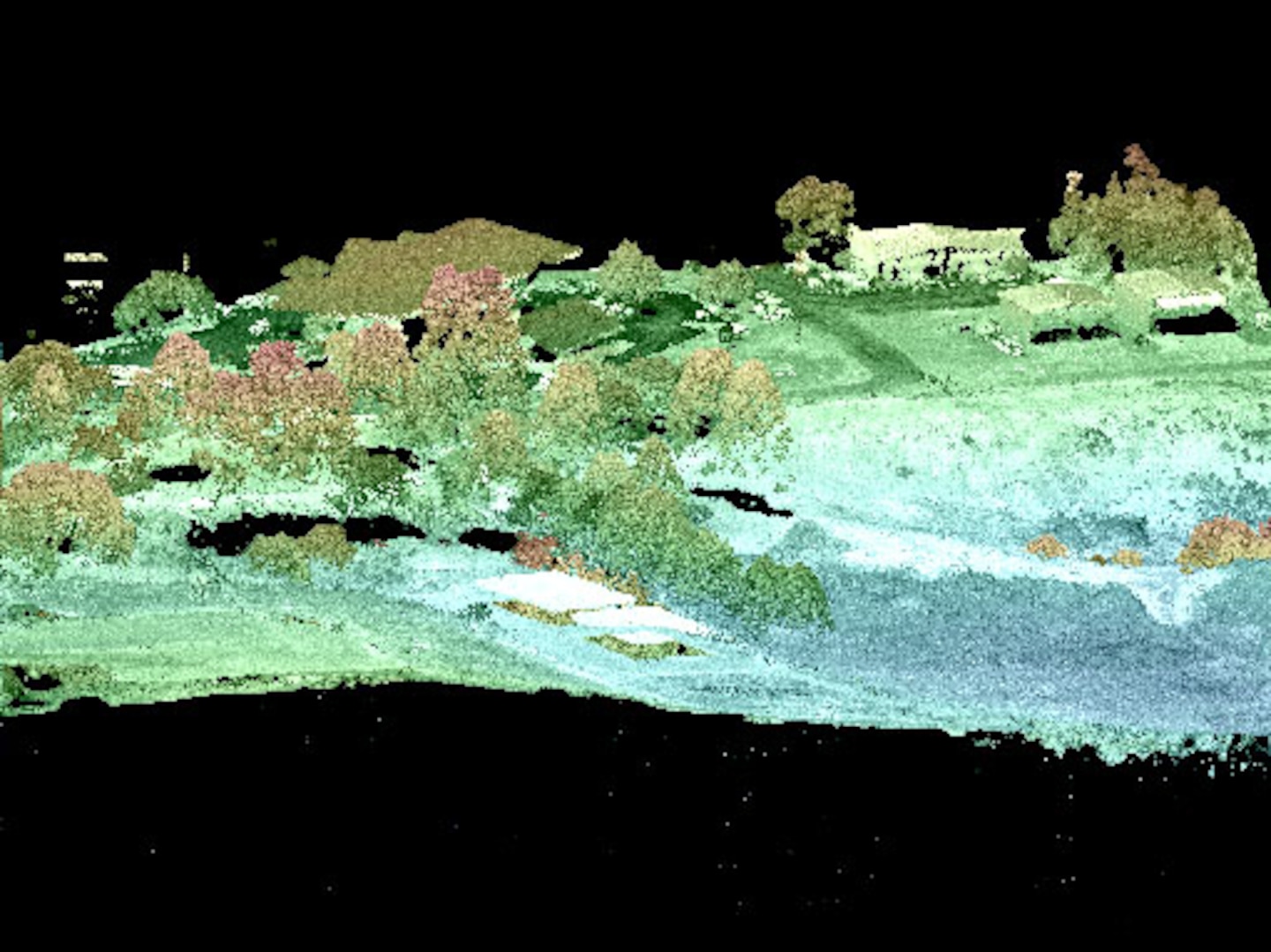

USACE created HyperCube to analyze and display multi- and hyper-spectral imagery.  This example shows a partially colorized image generated from a Lidar point cloud at a viewing angle of 60 degrees.

USACE created HyperCube to analyze and display multi- and hyper-spectral imagery. This example shows a partially colorized image generated from a Lidar point cloud at a viewing angle of 60 degrees.

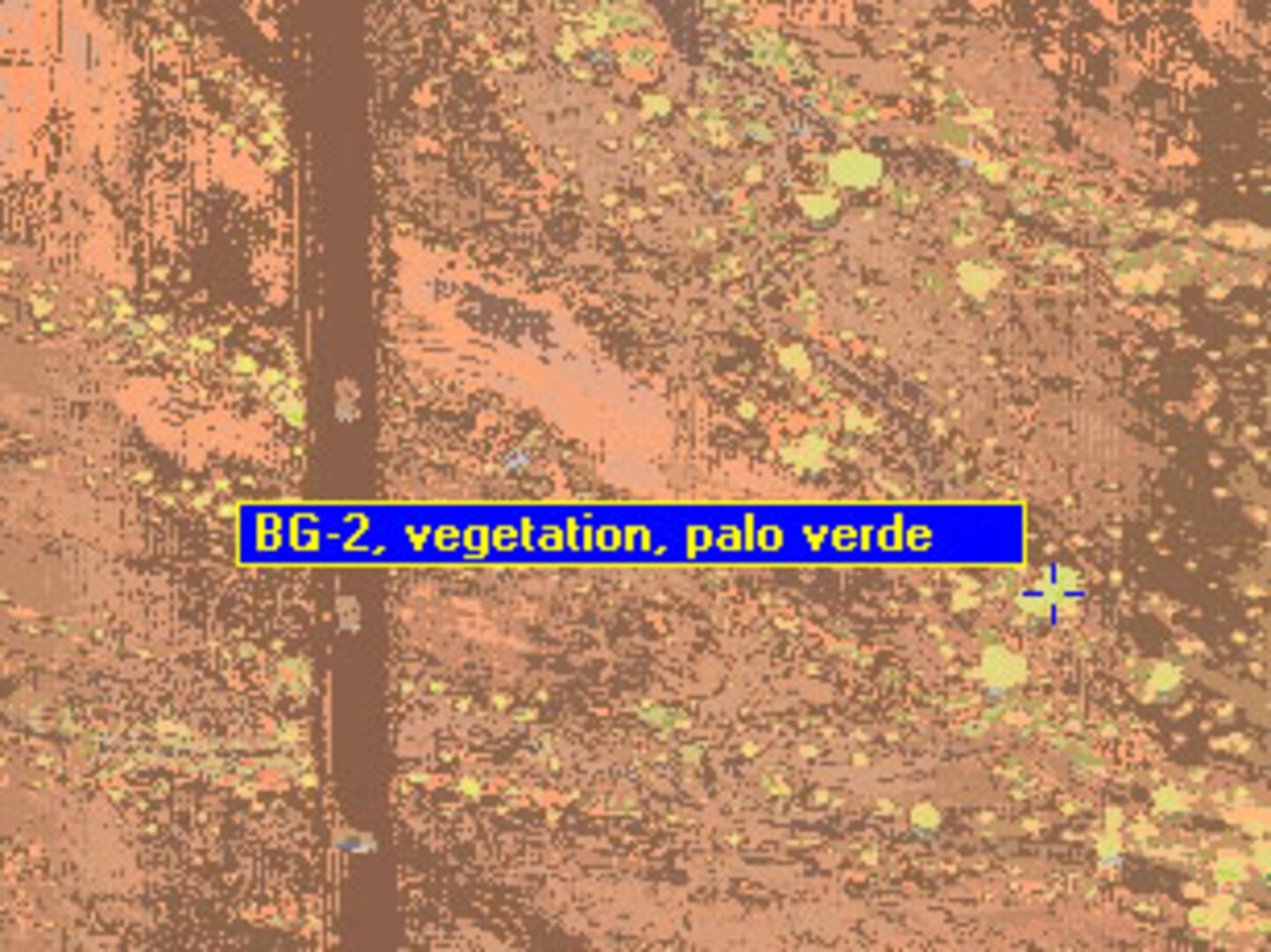

In this example, USACE used HyperCube to create a dynamic display of a library spectral signature superimposed upon the colorized classification of hyperspectral imagery.

In this example, USACE used HyperCube to create a dynamic display of a library spectral signature superimposed upon the colorized classification of hyperspectral imagery.

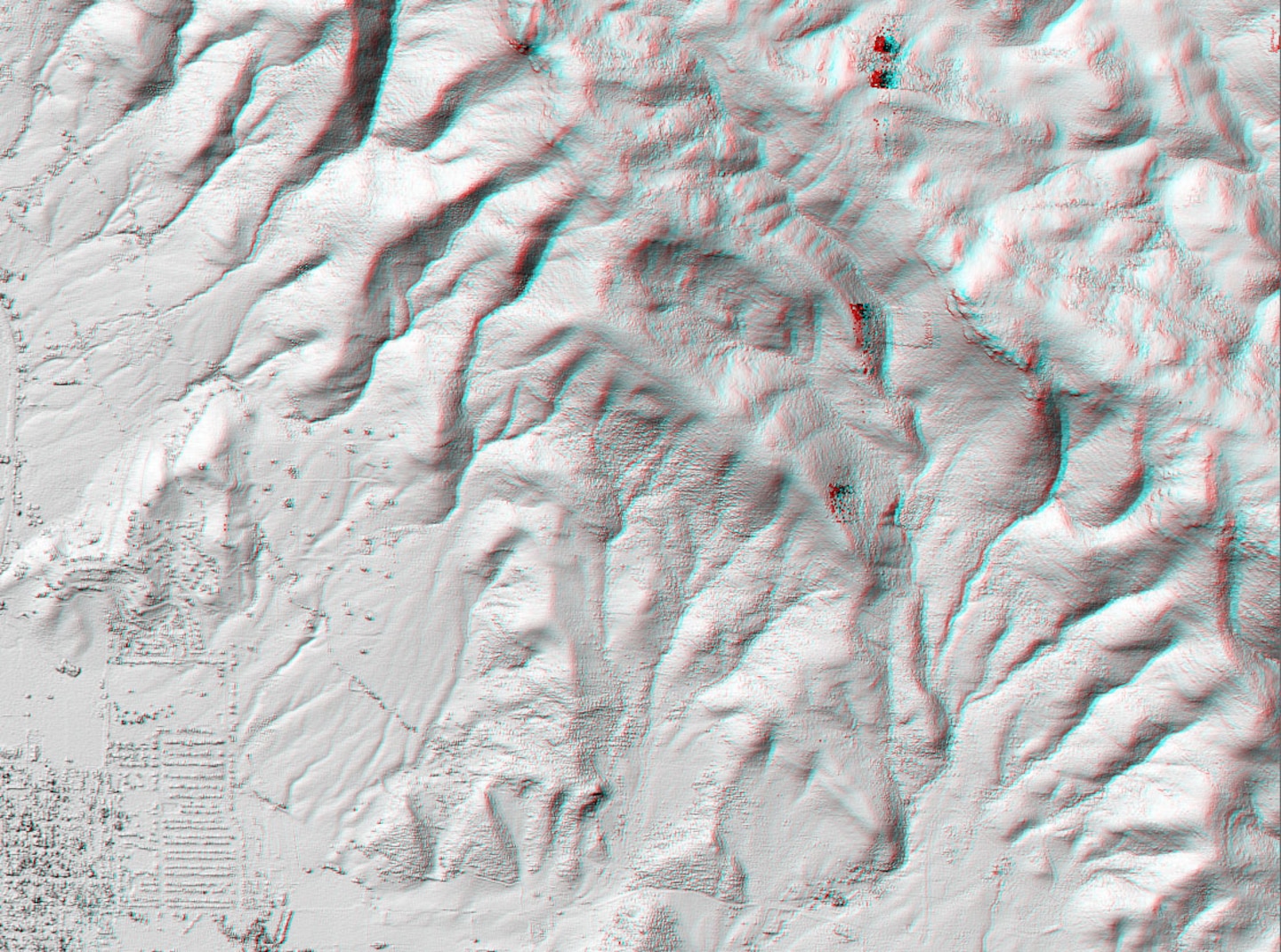

This anaglyphic stereo image uses USACE HyperCube to apply a shaded relief to Digital Elevation Matrix (DEM) data using a Sun elevation of 45 degrees at an azimuth of 135 degrees.

This anaglyphic stereo image uses USACE HyperCube to apply a shaded relief to Digital Elevation Matrix (DEM) data using a Sun elevation of 45 degrees at an azimuth of 135 degrees.

When it was introduced, spectral imaging technology gained widespread use in environmental remote sensing for military surveillance and tactical planning purposes. Today, hyperspectral and multispectral image display and analysis are used in an ever-growing number of uses, including applications in medical research and healthcare, food inspection and safety, forensics, geographical studies and mineral exploration.

Provides Comprehensive Analysis of Image Data

HyperCube is a Macintosh and Windows application program created by ERDC’s Geospatial Research Laboratory (GRL) that analyzes and displays multi- and hyper-spectral imagery. This includes the static and dynamic display of the image cube and the generation of spectral classifications using both imagery and spectral libraries.

HyperCube is easy to install and set up. With state-of-the-art functionality, HyperCube can filter, warp, mosaic, reformat, calibrate, combine, photogrammetrically project and perform arithmetic on imagery and data.

Other features include:

  • Image Loading: Intrinsic and general file types, SRF, TARGA, ERDAS Imagine, ESRI Shape, HDF, JPEG, LASF/ASCII LIDAR, NITF, PNG, TIFF
  • Image Operations and Conversions:  Zoom, gray and color mapping, data mapping, flips, rotations, filtering, components to color, indexed to color, gray scale/color tables, replace color, image to mask, histogram equalization
  • Image and Multiband Functions: Statistical measures, histograms, pixel exclusion, scatter plot, image arithmetic, mosaic points and references, warp, plot scaling, band and annotation list, band scrolling, flicker/superimpose, constructing/modifying a cube, color composite, spectral plots, selection point colors
  • Spectral Libraries and Classifications: Format, plotting and superimposing signatures; general and specific algorithms; classify function and options; image product; F(Signatures); ROC curves; attach class map; class map editor; spectral calibration
  • Utilities and Applications: Wrap JPEG in NITF; GeoTIFF and JPEG to NITF; Buckeye files to NITF; library; cube ASCII file conversions; concatenate images, cubes and files; apply transformation; merge LAS files; ASCII LIDAR to LASF; shaded relief; contour; stereo mate and compilation; perspective; radiance; lens distortion

Success Stories

USACE Army Geospatial Center Buckeye Program

The Buckeye Program was born in 2004 to aid the military in the acquisition of unclassified high-resolution geospatial data for tactical missions. Today, the Buckeye Program uses fixed winged and unmanned systems to rapidly collect, process, and distribute unclassified high-resolution and high-accuracy color imagery and elevation data for the military. Embedded in the Buckeye Program, HyperCube combines the flight orientation parameters and other metadata into georeferenced NITF files to aid military operations with rapid tactical response.

Government, Private and Academic Organizations

A diverse roster of organizations use HyperCube for their spectral imagery analysis and classification work, including the Arizona Department of Mines and Minerals, U.S. Library of Congress, NASA, Quebec Forest Service, B&D Natuuradvies, Equipoise Imaging, Raytheon, University of Paris, Montclair State University, Rochester Institute of Technology and many others.

Specifications

  •  Application written for Windows and Mac platforms
  •  Language is C++ Application Programmers Interface (API) level
  •  More than 200,000 lines of source code for each version
  •  Two hundred page PDF user’s guide with internal hyperlinks
  •  Quick start guide with several example data sets

Documentation and Support

HyperCube Executables and User Help (Windows and Macintosh)

HyperCube Sample Data Sets (Windows and Macintosh)

  • Cc.zip
    • Color wheel (8 bit BSQ, 440 pixels by 290 lines by 3 bands). Includes corresponding header (Cc.hdr) and wavelength (Cc.wvl) files
  • DTED.zip
    • Digital terrain elevation file. Includes header (DTED.hdr) file
  • Duncan Knob
    • LiDAR full wave form SDF file
  • LiDAR X, Y, Z and intensity data
    • LASF 1.2 format
  • LiDAR X, Y, Z and waveform data
    • LASF 1.3 format
  • URBAN.zip
    • HYDICE sensor imagery (16 bit BIL, 307 pixels by 307 lines by 210 bands). Includes header (URBAN.hdr) and wavelength (URBAN.wvl) files
  • TERRAIN.zip
    • HYDICE sensor imagery (16 bit BIL, 307 pixels by 500 lines by 210 bands). Includes header (TERRAIN.hdr) and wavelength (TERRAIN.wvl) file

NOTE

No new capabilities are planned for HyperCube. Minimal technical support including questions & bug fixes only.



Contact

Delma.B.Delbosque@usace.army.mil, 703 428 6638
