New cold weather facilities established to test coatings that mitigate ice adhesion, corrosion

U.S. Army Engineer Research and Development Center
Published Jan. 11, 2023

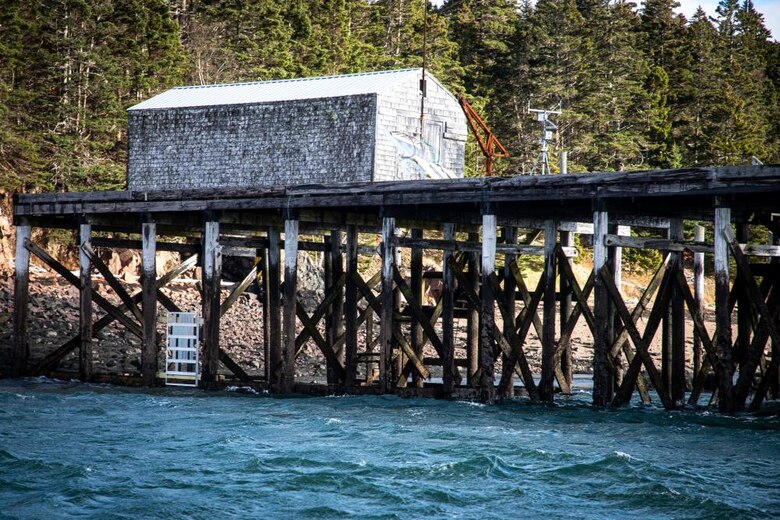

Treat Island, Maine facility for testing coatings

The new testing facilities for evaluation of coating technologies on Treat Island in the Bay of Fundy near Eastport, Maine, November 2022. The Island’s cold weather testing facility was retrofitted with new equipment, part of a project led by the U.S. Army Engineer Research and Development Center’s Cold Regions Research and Engineering Laboratory research materials engineer, Dr. Emily Asenath-Smith, to establish testing facilities in some of the coldest and inhospitable climates in the U.S. for coatings that may mitigate ice adhesion and corrosion. Other testing sites were established in Fairbanks, Alaska, and Hanover, New Hampshire.

Three CRREL employees retrofit Treat Island testing facilities.

Olivier Montmayeur, a research mechanical engineer at U.S. Army Engineer Research and Development Center Cold Regions Research and Engineering Laboratory (CRREL), along with two other CRREL employees, installs the weather and visual monitoring station on Treat Island in the Bay of Fundy near Freeport, Maine, November 2022. The effort was part of a project led by CRREL research materials engineer, Dr. Emily Asenath-Smith, to establish testing facilities in some of the most inhospitable climates in the U.S. The facilities will test coatings that may mitigate ice adhesion and corrosion.

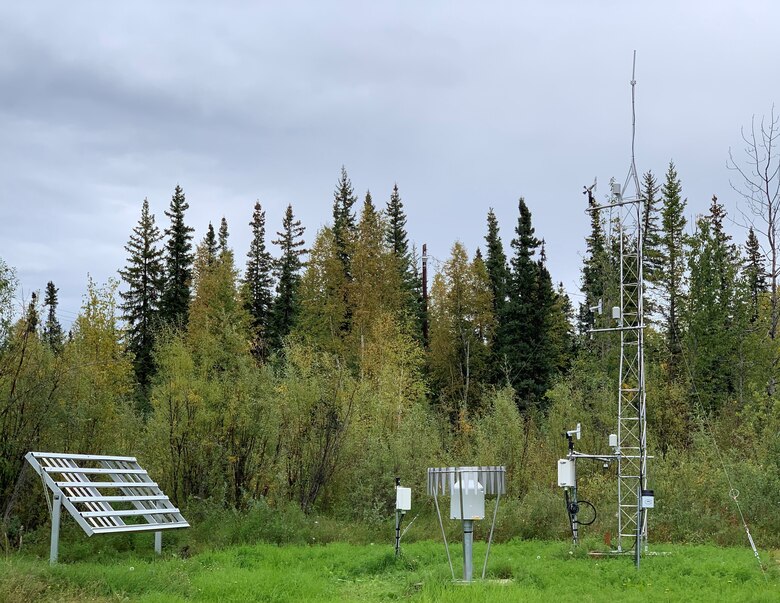

Coating testing facilities in Fairbanks, Alaska

Located in Fairbanks, Alaska, new testing facilities for coatings that may mitigate ice adhesion and corrosion have been established by the U.S. Army Engineer Research and Development Center Cold Regions Research and Engineering Laboratory’s Dr. Emily Asenath-Smith and her team. The facilities in Fairbanks; Hanover, New Hampshire; and Treat Island, Maine, will enable coating testing in cold weather regions.

VICKSBURG, Miss. — The U.S. Army Engineer Research and Development Center’s (ERDC) Cold Regions Research and Engineering Laboratory (CRREL) in Hanover, New Hampshire, announced the creation of three new facilities on Treat Island, Maine; in Fairbanks, Alaska; and in Hanover for the testing of coatings to withstand — and even mitigate — ice adhesion and corrosion.

“These are enduring assets that will help us understand the durability of new coatings and surface treatments to transition these technologies to protect real assets in the field,” said Dr. Emily Asenath-Smith, research materials engineer and lead of the Ice Adhesion Facility at ERDC’s CRREL.

“We’ll be tracking the weather, and we’ll have camera monitoring at each site, so researchers will have visual and meteorological data to pair with data on coating performance at each location,” she said.

Asenath-Smith collaborated over several years with ERDC’s Paint Technology Center of Expertise, led by Dr. Rebekah Wilson, at the Construction and Engineering Research Laboratory (CERL) in Champaign, Illinois, to establish the new facilities.

“CERL has had the capability to expose coatings to outdoor conditions in their environment for a long time,” Asenath-Smith said. “Across the Army and the federal government, the coldest place they’ve tested coating technologies is in Champaign, so our new facilities are a big expansion of capabilities.”

“This capability, to test coatings in these cold, tremendously inhospitable climates, is completely new for a federal laboratory,” Wilson said. “This seems like it’s going to open up a lot of possibilities to develop new cold weather coating technologies.”

The planning for the new facilities at the three locations started in 2019, and Asenath-Smith and her team deployed the first prototype rack on Treat Island, located in the Bay of Fundy off the coast of Eastport, Maine, in 2021.

“The Bay of Fundy is unique; it is the U.S.’s northern-most point off the Atlantic coast,” Asenath-Smith said. “It’s really rough out there, there is wave action and wind, and it’s completely exposed. The tide changes by 22 feet at each cycle and there are two cycles per day. The cold water gets icy in the winter, and in this environment, the coated test panels are exposed to cyclic immersion in salt water, freezing and thawing conditions, and solar irradiance — some common estimates are that one year on Treat Island is equivalent to six years inland.”

“The first rack was deployed on Treat Island to see if it would still be standing and still have samples in it,” she said. “After that first winter, not only was the rack still here, it had all the coated panels in it — they were just a little bent.”

The second improved version, along with the weather and visual monitoring system, was just installed this past November.

“We had to build a monitoring system that will stand by itself with no human interaction for up to eight months,” said Olivier Montmayeur, a CRREL research mechanical engineer who retrofitted part of the facilities on Treat Island in November. “It’s always different between engineering from photos and actually getting your hands dirty and seeing what’s going on in person. We got there and had less than 30 minutes from the time we could get onto the lower dock to install the new rack, before it was completely submerged again.”

The facilities at Hanover were deployed in October 2022; a system was erected in Fairbanks in August 2022.

Asenath-Smith and her team already have projects slated for the next few years to take advantage of the new capabilities. Some of the testing they do before deploying the panels and after are related to how well the coating adheres to the metal of the panels, or how well the ice adheres to a surface after exposure.

“Our main customer right now for Treat Island is the Office of Naval Research; we are assisting them with the assessment of coatings to control topside ship icing and icing on ship superstructures,” Asenath-Smith said. The ship superstructures she refers to are any parts of the ship above the deck.

The team has specimens from the National Institute of Standards and Technology at their Hanover site.

“And in Alaska, we have samples supporting a study for the Army,” she said. “That study is related to the surfaces of modular, temporary bridging systems that the Army uses. The improved ribbon bridge in particular is one they’re interested in.”

The new capabilities could have civilian application as well.

“Once the military validates technology like this, it usually translates to civilian infrastructure,” said CRREL Director Dr. Joseph Corriveau. “Imagine, if we can actually mitigate icing and corrosion on structures that are going to be exposed to cold climates, we can use that technology on municipal infrastructure, vessels like crabbing ships, and so on.”
